Neo-Angle Shower Door Seals (135°)
Quick answer

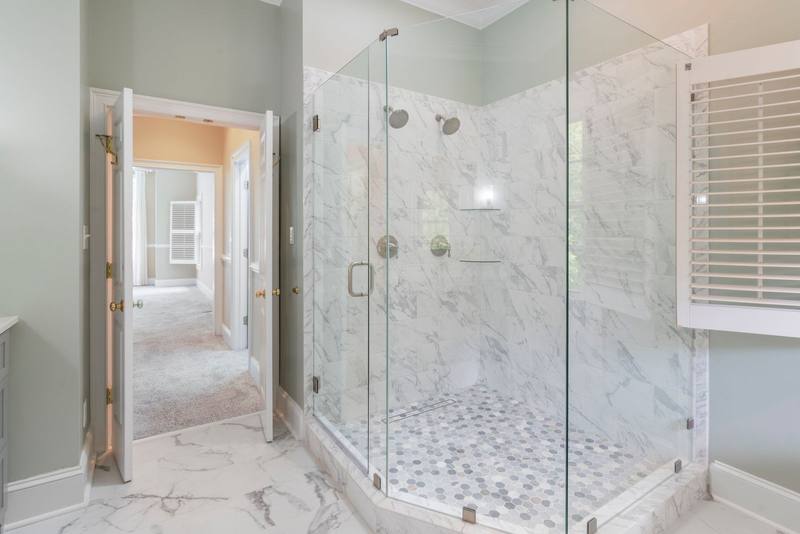

A neo-angle enclosure cuts the corner diagonally: two fixed panels meet the door at 135 degrees, and every vertical seal must be a 135° profile — flat-door seals do not close an angled joint. The two angled verticals are the leak points; the bottom is a normal straight sweep. Frameless neo-angles run 3/8 inch glass with snap-on polycarbonate jamb seals or 135° magnetic pairs; budget framed kits run 1/4 inch glass with frame-integrated vinyl.
Data reviewed:
How this door type seals
The diamond footprint (typically 36×36 or 38×38 inches with a 24 inch door) packs a shower into a corner, at the price of two mitered vertical joints. Dedicated hardware exists for exactly this geometry: 135° door-jamb seals snap onto the hinge-side door edge, 135° strike-jamb seals onto the mitered fixed-panel edge, both as clear polycarbonate carriers with replaceable vinyl inserts in stock lengths up to 95 inches. The suggested design gap for these profiles is about 3/16 inch — measure yours before ordering, because a settled enclosure often runs wider at the top or bottom. Magnetic closures for neo-angles are angle-specific too: a 135° pair, not the common 180° or 90° sets.
Typical glass on neo-angle (135°) doors
1/4″ · 0.250 in · 6.4 mm · 3/8″ · 0.375 in · 9.5 mm
Frameless neo-angles: 3/8″ (10 mm) standard. Framed/semi-frameless corner kits: 1/4″ (6 mm). The jamb-seal carrier is sized to the glass; the vinyl insert is replaceable separately.
Every sealing zone on this door
| Zone | What seals it |
|---|---|
| Hinge-side 135° joint | 135° door jamb seal snapped onto the door edge (polycarbonate carrier + vinyl insert) |
| Strike-side 135° joint | 135° strike jamb seal on the fixed panel's mitered edge, or a 135° magnetic pair |
| Bottom edge | Standard straight press-on sweep sized to glass and gap |
| Fixed panel perimeter | Silicone at walls and curb — static joints, not replaceable seals |
Seal types this door uses most
What to measure before ordering
- The angle itself: neo-angle joints are 135°, but verify — some wide doors use 22.5° returns
- Vertical gap at the top, middle and bottom of each angled joint (suggested design gap ≈ 3/16″)
- Glass thickness of the door AND each fixed panel — they can differ
- Stock length needed: profiles ship up to 95″ and cut with a fine-tooth saw, not score-and-snap
Full walkthroughs: glass thickness · bottom gap.
Catalog seals rated for this door construction
Shower Splash Guard Corner Fins, 10 in, Pair
- Glass
- —
- Length
- 10″
- Material
- Clear PVC
- Mount
- adhesive
Quarter-round fins that mount at the curb corners to block low-angle spray escaping around the fixed panel or door edge. Sold in pairs with adhesive or silicone.
⚠ Fixes corner splash only — water passing under the door needs a sweep, not a splash guard.
Frameless Shower Door Bottom Sweep with Drip Rail, 1/4 in Glass, 1/2 in Wipe, 36 in
- Glass
- 1/4″
- Gap
- 1/8–3/8″
- Length
- 36″
- Material
- Polycarbonate channel, PVC wipe
- Mount
- press-on
- Trim
- Cut to size
Channel is sized to the glass — verify thickness with a caliper. The 1/2 in wipe seals gaps of 1/8 in–3/8 in. Cut with a fine-tooth hacksaw.
Frameless Shower Door Bottom Sweep with Drip Rail, 1/4 in Glass, 3/4 in Wipe, 36 in
- Glass
- 1/4″
- Gap
- 3/8–5/8″
- Length
- 36″
- Material
- Polycarbonate channel, PVC wipe
- Mount
- press-on
- Trim
- Cut to size
Channel is sized to the glass — verify thickness with a caliper. The 3/4 in wipe seals gaps of 3/8 in–5/8 in. Cut with a fine-tooth hacksaw.
Frameless Shower Door Bottom Sweep with Drip Rail, 5/16–3/8 in Glass, 1/2 in Wipe, 36 in
- Glass
- 5/16–3/8″
- Gap
- 1/8–3/8″
- Length
- 36″
- Material
- Polycarbonate channel, PVC wipe
- Mount
- press-on
- Trim
- Cut to size
Dual-size channel seats snug on 5/16 in and neutral on 3/8 in glass. The 1/2 in wipe seals gaps of 1/8 in–3/8 in. Cut with a fine-tooth hacksaw.
⚠ On 5/16 in glass press the channel on dry; lubricant makes dual-size channels creep.
Common buying mistakes
- Ordering 90° or 180° profiles for a 135° joint — the geometry cannot be bent to fit.
- Replacing the whole jamb seal when only the vinyl insert is worn; inserts swap in for a few dollars.
- Caulking the angled door joints shut in frustration — the door stops opening, and the caulk tears.
- Assuming both fixed panels match the door's glass thickness on mixed framed/frameless kits.
Frequently asked questions
What angle seal does a neo-angle shower door need?
A 135-degree profile on both vertical joints: door-jamb seal on the hinge side, strike-jamb seal (or a 135° magnetic pair) on the closing side. The bottom takes a normal straight sweep.
Why won't a standard side seal work on my neo-angle door?
Flat side seals present their fin parallel to the glass, but a neo-angle joint meets at 135 degrees — the fin lands edge-on and never seals. The angled carriers exist precisely to aim the vinyl across the mitered gap.
Can I cut neo-angle jamb seals to height?
Yes — they ship in stock lengths up to 95 inches. Cut the polycarbonate carrier with a fine-tooth hacksaw (scoring and snapping shatters it) and deburr the end before installing.
My neo-angle magnet door drifts open. Which part failed?
Almost always the PVC carrier, not the magnet: yellowed, shrunken vinyl lets the strips misalign. Replace the pair as a matched 135° set sized to your glass thickness.
